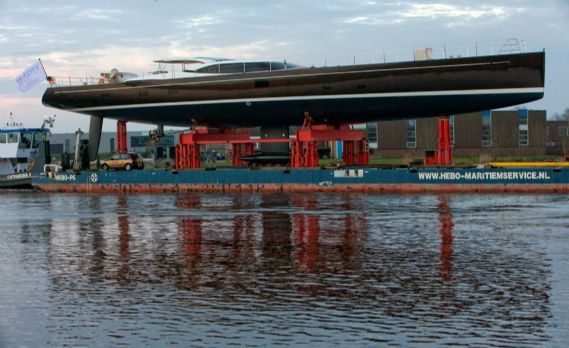

Lady B è uno sloop da 44,7 metri progettato dallo studio Dubois Naval Architects, affiancato per gli interni da Rhoades Young. Cantiere Vitters Shipyard.

Costruita in alluminio, Lady B ha un piano velico ad alta efficienza, con albero in carbonio e boma avvolgibile, sartiame in PBO. Il suo sistema di chiglia mobile genera un pescaggio compreso tra i 4 e i 6 metri.

Dopo l’installazione dell’albero ed i test il Lady B partirà per il suo viaggio inaugurale.

GENERAL
Type : Lift keel Sloop
Design & Styling : Dubois Naval Architects Ltd.
Naval Architect : Dubois Naval Architects Ltd.
Interior Design : Rhoades Young Design
Owner’s Representative : MCM Newport, Nigel Ingram
Builder : Vitters Shipyard BV
Year of delivery : 2009
PRINCIPAL DIMENSIONS
Length hull overall : 44.7 m / 147 ft
Length waterline : 40.2 m / 132 ft
Beam (max) : 9.0 m / 30 ft
Draught : 4.1 m (14 ft) keel up / 6.1 m (20 ft) keel down
Ballast : 45 tonnes
Displacement : 240 tonnes
Hull construction : Aluminium
Superstructure : Aluminium
Exterior paint system : Hull, masts and superstructure: Awl-grip
Classification : Lloyds 100 A1, SSC Yacht Mono G6 LMC – UMS
PROPULSION
Main engine : 1 x Caterpillar C18 c-rating
Power : 533kW @ 2100rpm
Gearbox : 1x Mekanord 350 HS / LS
Shaft & propeller : 1 x Korsør controllable pitch, CP-18RS, 1300mm
Steering gear : Edson cable steering
Exhaust systems : Halyard
EQUIPMENT
Bowthruster : Maxpower R600, hydraulic retracting thruster
Sternthruster : Maxpower R450, hydraulic retracting thruster
Windlasses : Maxwell VWC6000
Anchor : 2 x 400 lb, 16mm studlink U2
Sideboarding ladder : Hydromar hydraulic
Crane : Tender lift pole by Southern Spars
DECK EQUIPMENT
Reel winches : Lewmar
Mooring / Utility winches : Harken
Deck hardware : Harken
